Description
DS-3307

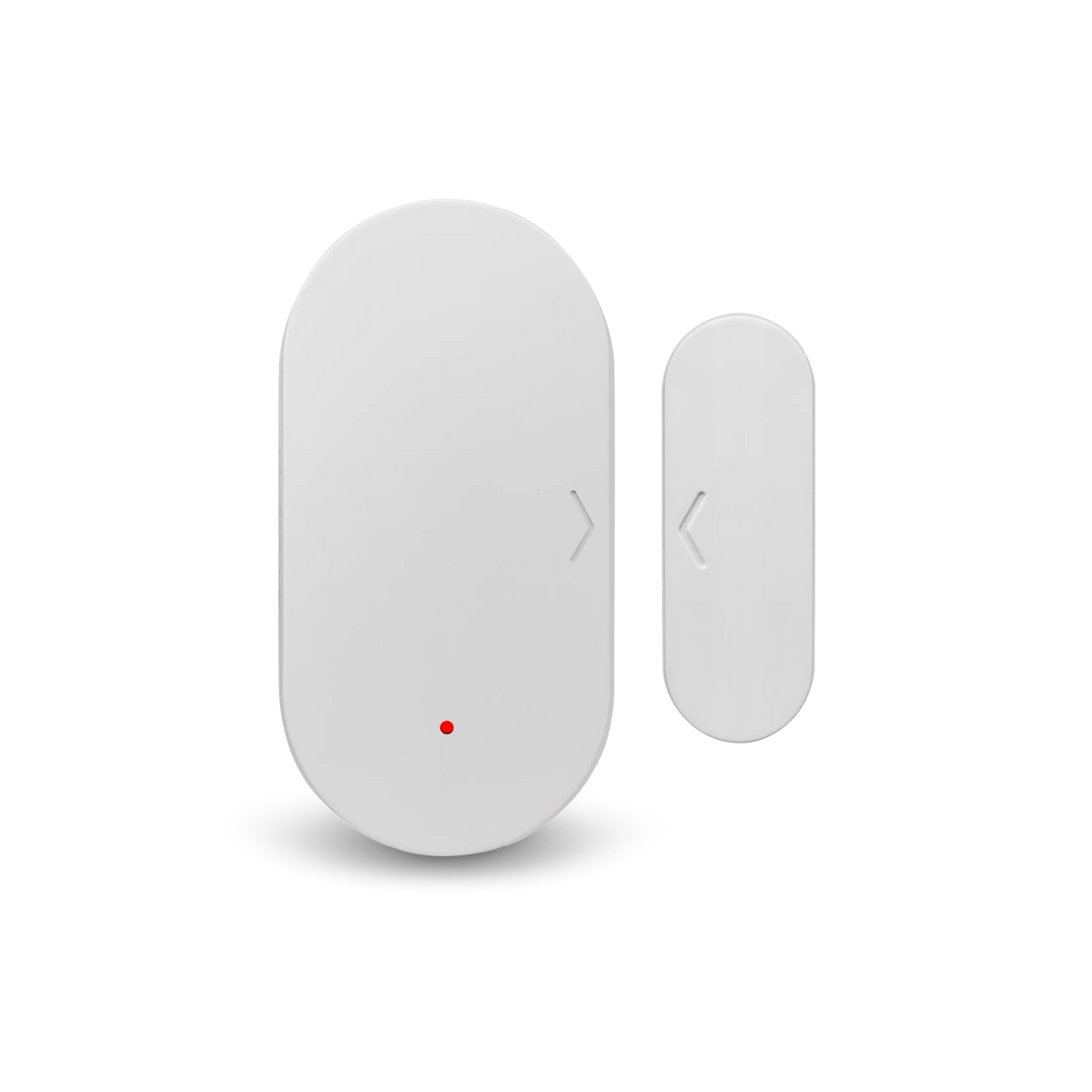

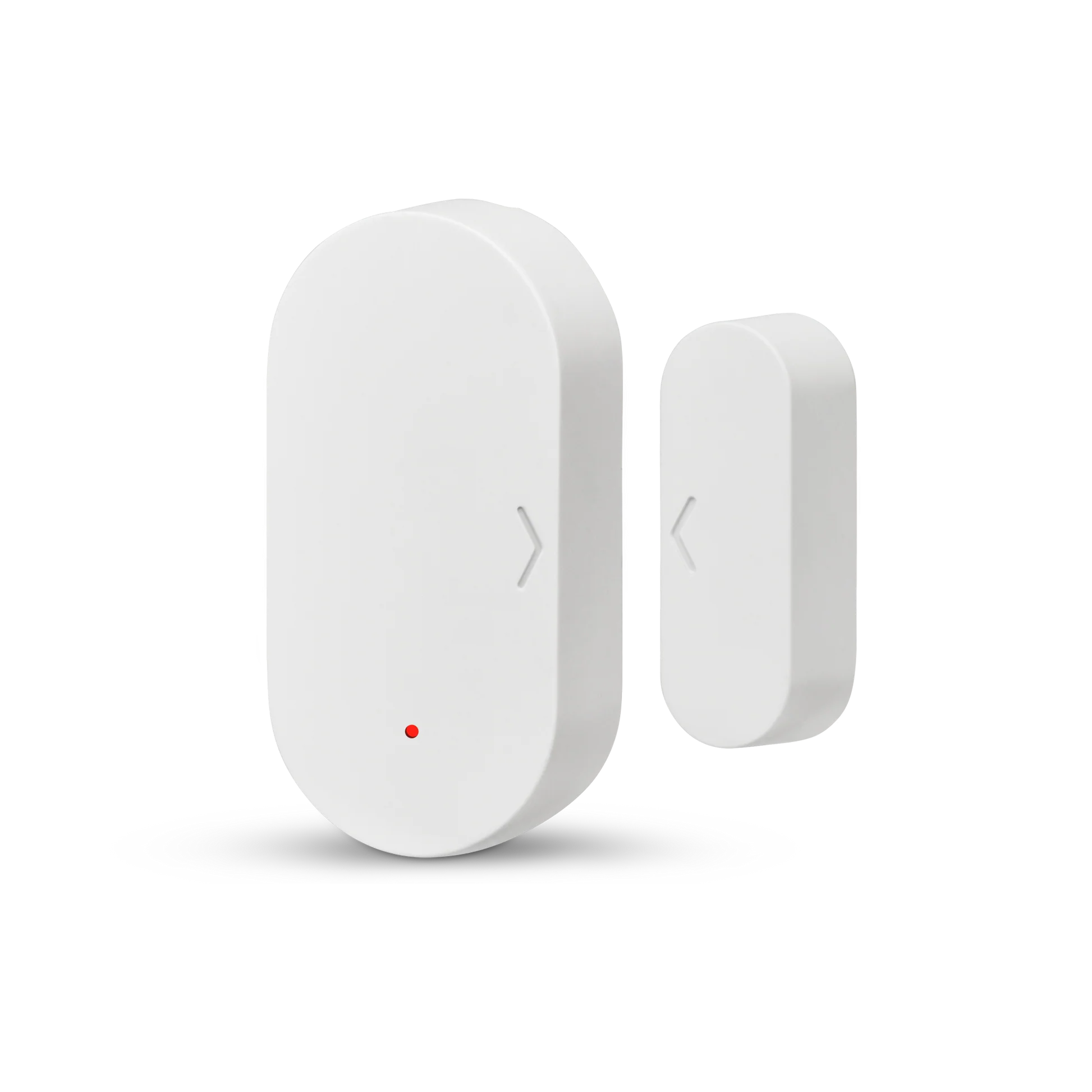

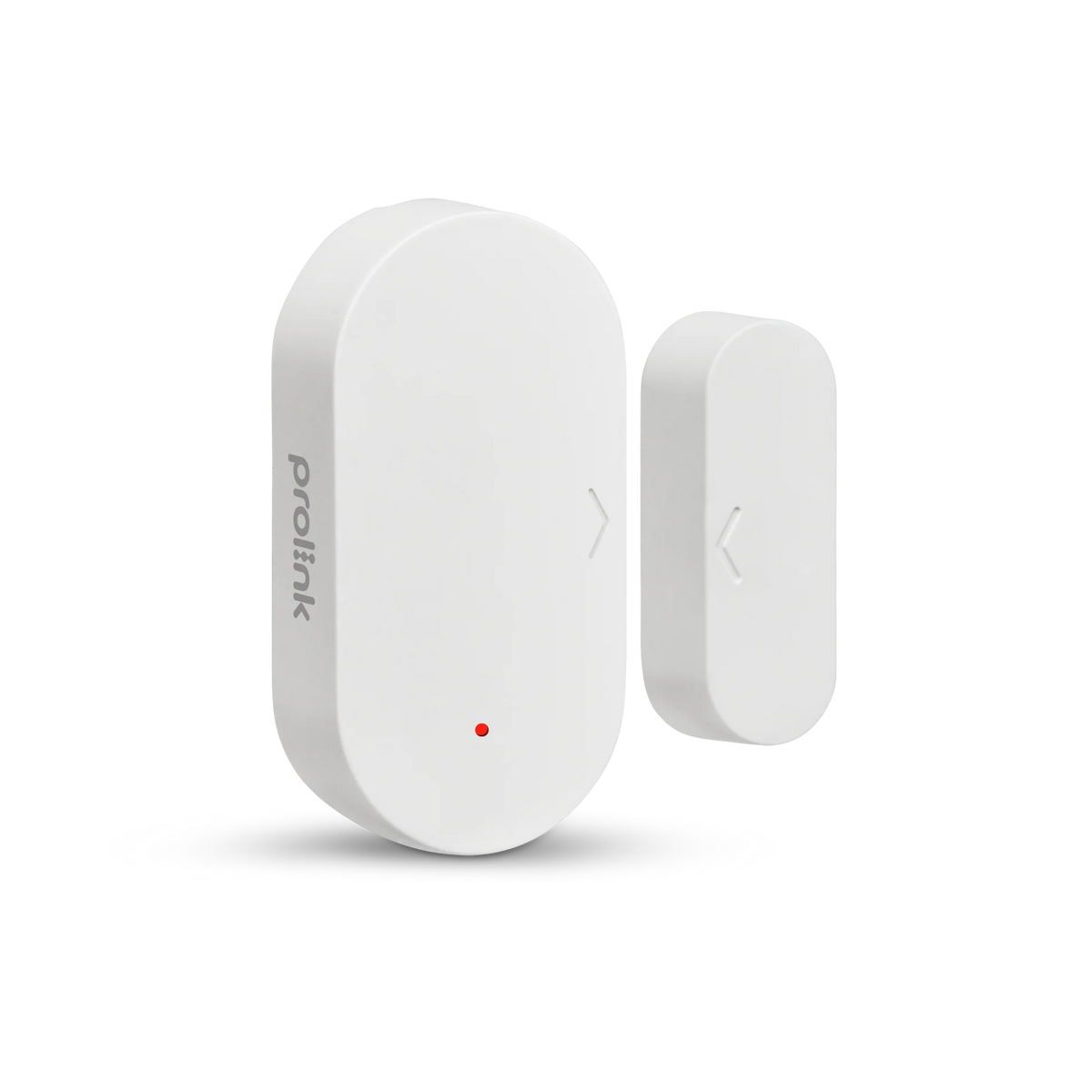

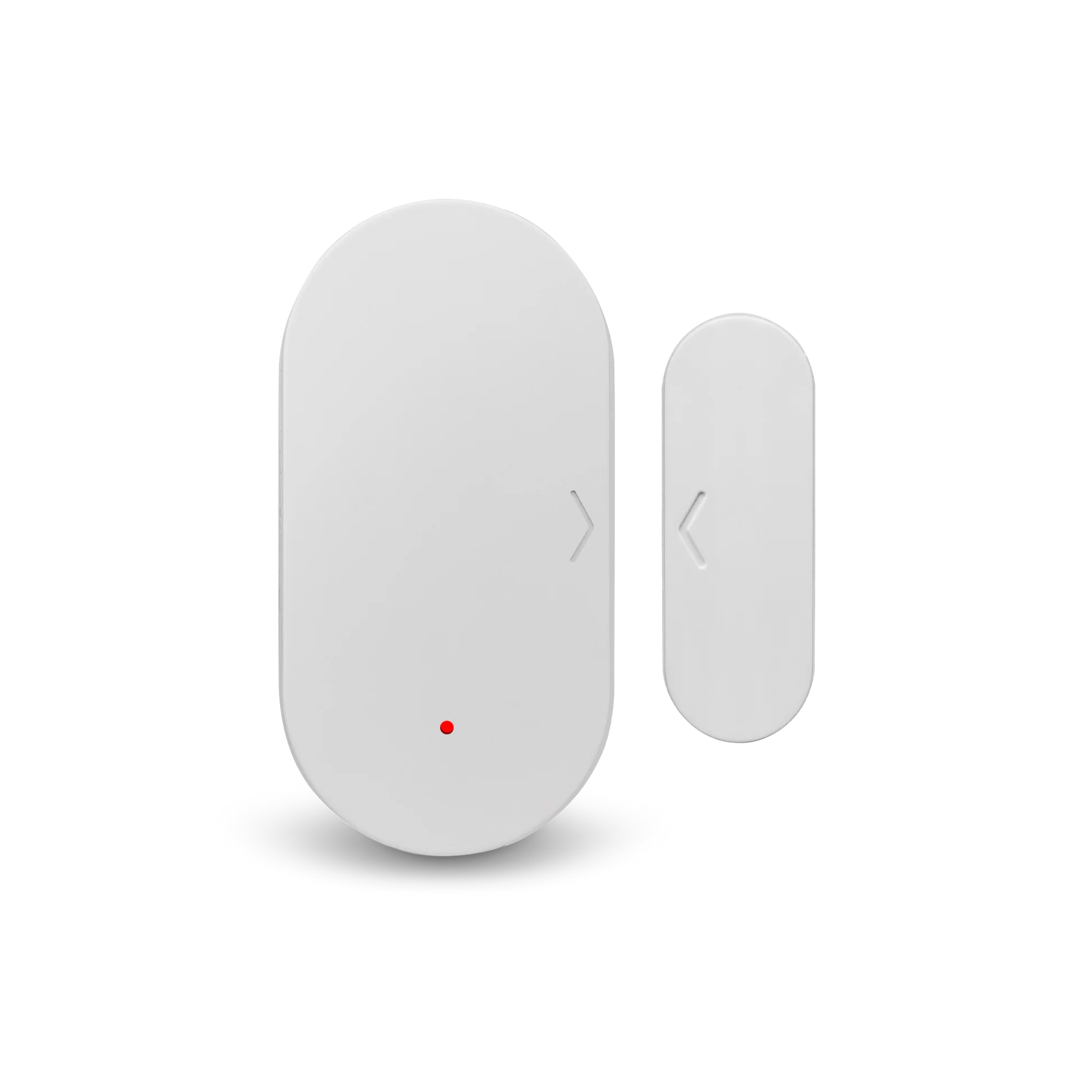

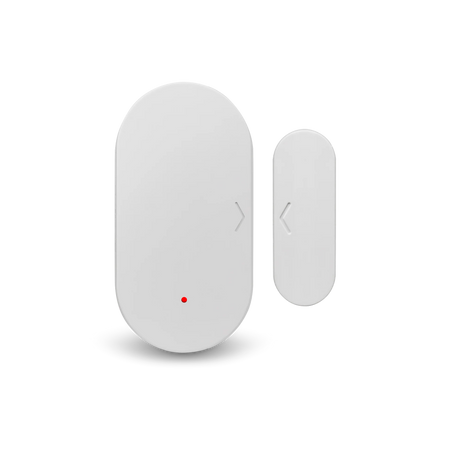

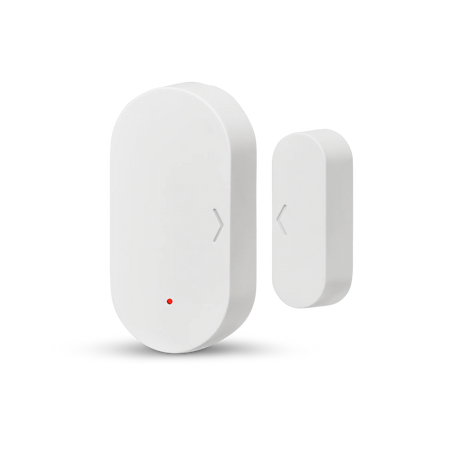

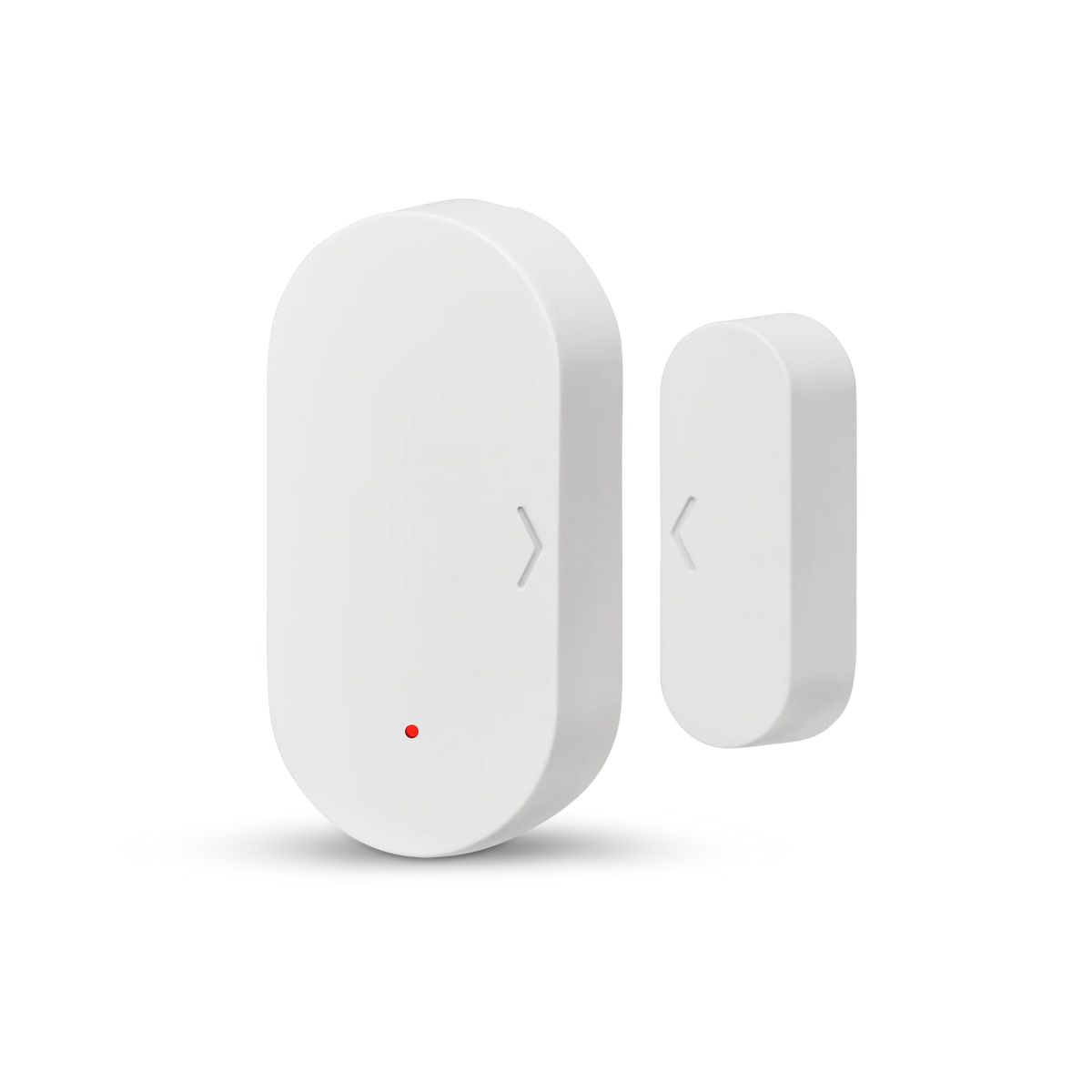

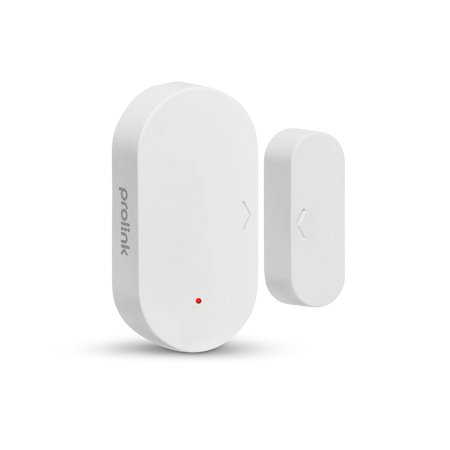

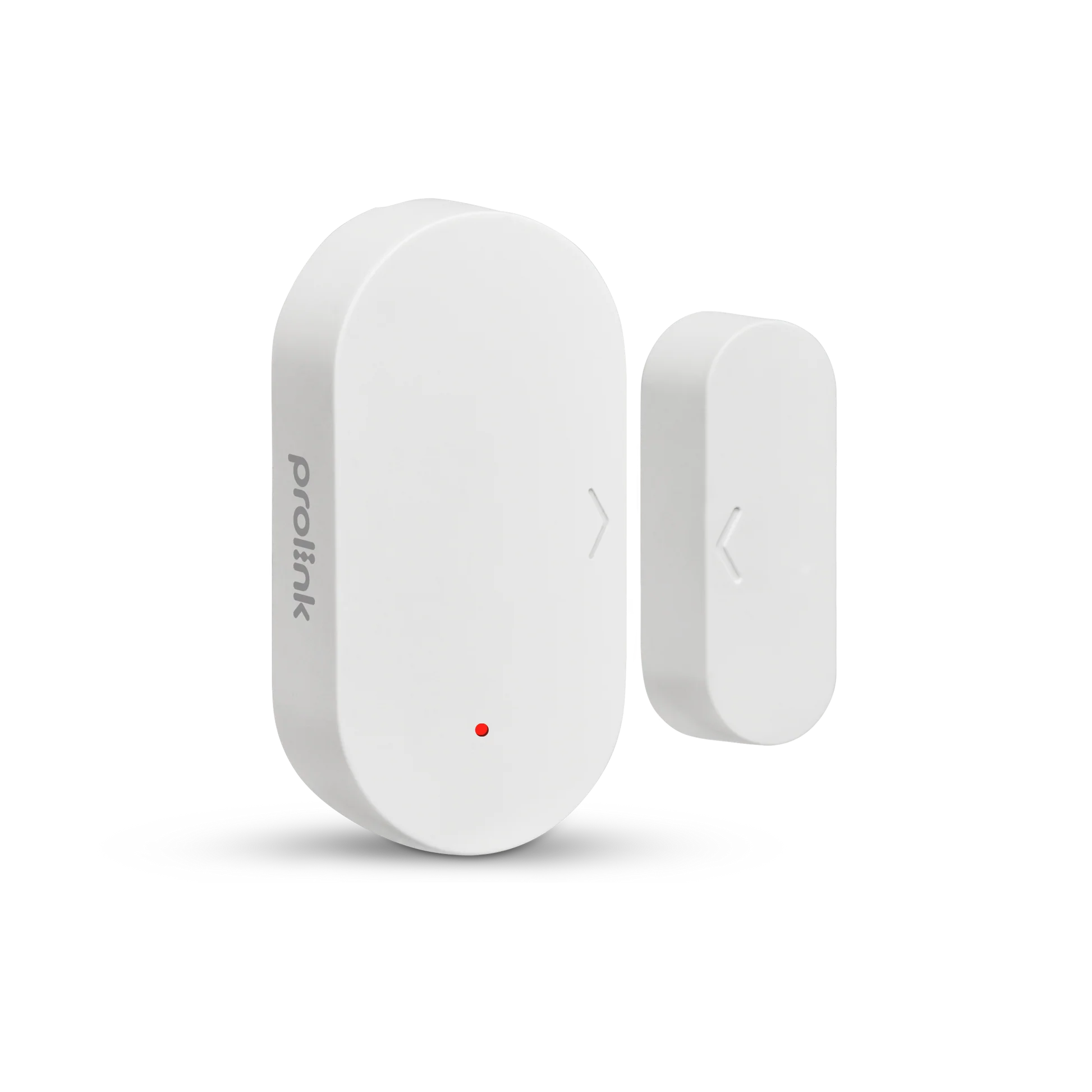

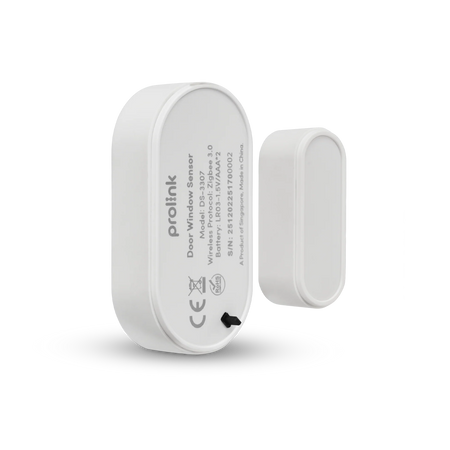

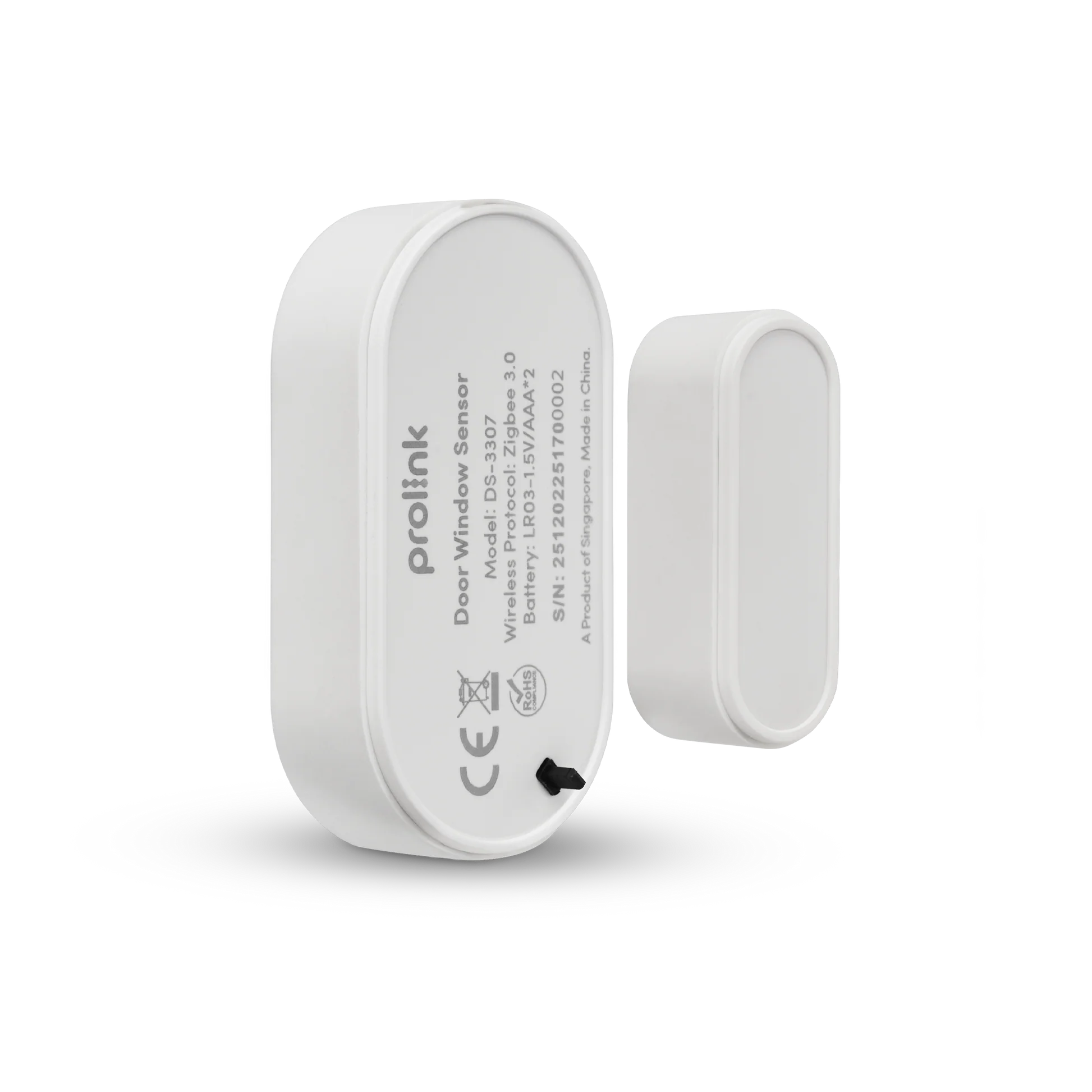

Smart Zigbee Door/Window Sensor
Trigger lights and alarms, get timely notifications, and more based on door and window activities with DS-3307 Smart Zigbee Door/Window Sensor. Seamlessly integrate it into your smart home for enhanced convenience and efficiency.
Zigbee Hub is required.
Features
At a glance
Zigbee 3.0 protocol
Tamper alarm
Ultra-low power consumption
Tech Specs
|
Communication
|
Zigbee 3.0
|
|
Voltage
|
1.8 - 3.6V
|
|
Power Requirement
|

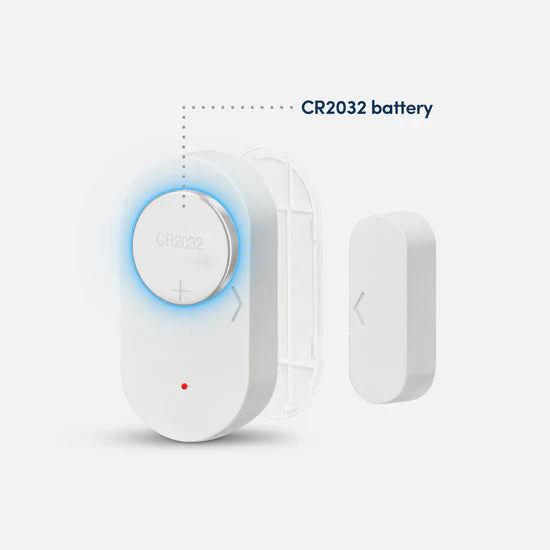

CR2032 Battery x 1
|
|
Standby Current
|
< 4uA
|
|
Alarm Current
|
< 0.5mA
|
|
Channel and Frequency
|
11 - 26 @ 2.400 - 2.483GHz
|
|
Induction Range
|
< 15mm
|
|
Wireless Standard
|
IEEE 802.15.4
|
|
Antenna Type
|
PCB antenna, antenna gain 1dBi
|
|
LED Indicator
|
Red
|
|
Operating Temperature and Humidity
|
0°C to +40°C; 20% to 85%RH
|
|
Storage Temperature and Humidity
|
0°C to +60°C; 0% to 90%RH non-condensing
|

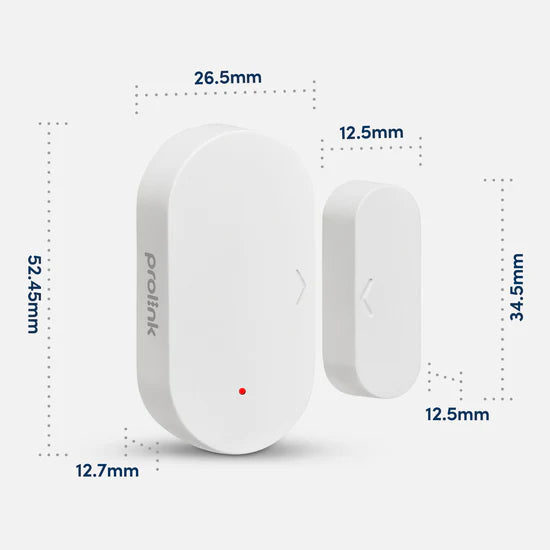

Dimensions
|
Dimensions
|
Product
52.45mm x 26.5mm x 12.7mm (Main body)
34.5mm x 12.5mm x 12.5mm (Magnet)
With packaging
NA
|
