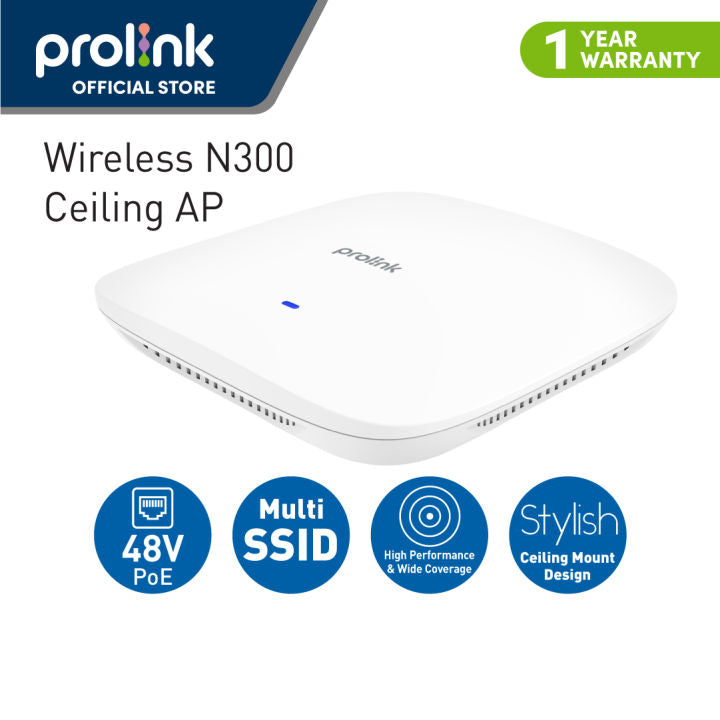

Prolink PAN1201C 2.4GHz Wireless-N 300Mbps Ceiling Wireless Access Point
Couldn't load pickup availability
- SKU PAN1201C
Do you have questions about this product?
Help your customers identify what payments are accepted by your store.
PAN1201C
Wireless N300 Ceiling AP
Up to 300Mbps aggregated data rate
Dual-band wireless connectivity
Simple and easy setup

Dual-band connectivity
PoE

Stylish ceiling mount design
Stylish mounting design to be easily installed on a wall or ceiling that blends in with most interior decorations.

High performance
Supports 802.11n MIMO with total aggregated data rate up to 300Mbps.

Easy installation with PoE
Integrated PoE to ease the installation process even if there is no power outlet nearby.
Note: Product specifications are subject to change without prior notice as part of ongoing product improvements.
Wireless standards
IEEE 802.11 b/g/n (2.4 - 2.484GHz)
Transmit Power
2.4GHz 802.11n: ≤20dBm
Note: maximum transmission power may vary across different countries subject to local regulatory and regions in which the device is used
Wireless Function
Reboot Schedule
Fast Roaming
Automatic Channel Assignment
Transmit Power Control
Airtime Fairness
Maximum Client Connection Setting
Wireless Schedule
Software (Fit AP Mode) Wireless Function
Reboot Schedule
Fast Roaming
Automatic Channel Assignment
Transmit Power Control
Airtime Fairness
Maximum Client Connection Setting
Wireless Schedule
Software (Fit AP Mode) Wireless Security
Captive Portal Authentication
MAC Address Authentication
Wireless Isolation Between Clients
SSID to VLAN Mapping
WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
Software (Fat AP Mode) Wireless Function
Multiple SSIDs
Automatic Channel Assignment
Transmit Power Control
Maximum Client Connections Setting
Software (Fat AP Mode) Wireless Security
Guest Network
Wireless MAC Address Filtering
Wireless Isolation between clients
SSID to VLAN Mapping
WPA/ WPA2-Enterprise, WPA-PSK / WPA2-PSK
Interface
1x Gigabit Ethernet RJ45 WAN/POE port (supports IEEE 802.3 at POE)
1x Gigabit Ethernet RJ45 LAN port
1x DC Jack input
LED
1x Multi-colour LED
1x WAN LED
1x LAN LED
Button
1x Reset button
Power Supply
PoE (802.3at) or External 12VDC 1.5A power supply
Antenna
2.4GHz: 2x 5dBi
Mounting
Ceiling/ Wall (mounting kit included)
OS Supported
Microsoft Windows 7/ 10
MAC 10.6 and above
Linux
