Description
CL-W481-PL12SW-A

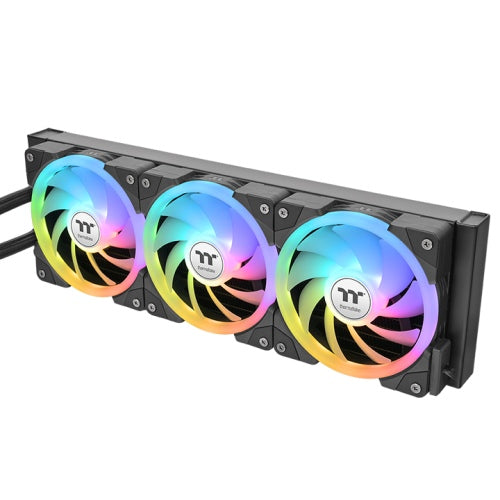

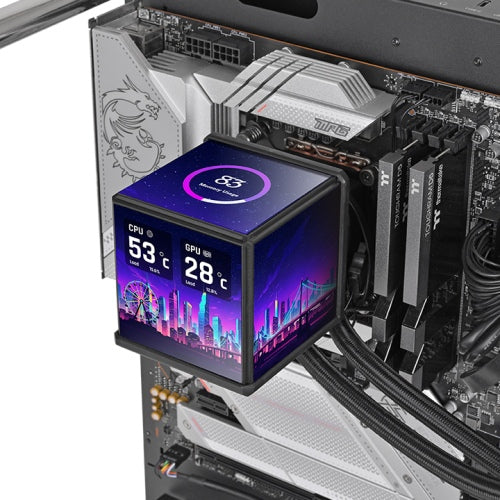

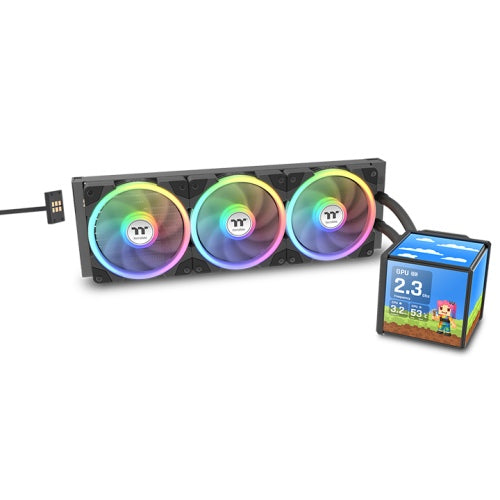

MINECUBE 360 Ultra ARGB Sync features a Patented Quad-LCD Cube Display, composed of four 3.95” TFT LCDs. Each LCD display can independently showcase system information, custom visuals, or combine into a multi-screen layout for a single expansive illustration. With the innovative AI Forge function, you can easily create personalized backgrounds. This AIO liquid cooler includes SWAFAN EX fans with MAGForce 2.0 Quick Connection Design and Swappable Fan Blade Design, minimizing cable clutter while fully presenting dual-ring RGB lighting in different airflow directions.
Features
At a glance
-
Quad 3.95” TFT LCD Displays – Fully customizable screens (720x720 resolution) to display system stats, images, or animations
-
High-Performance 360mm Radiator – Efficient heat dissipation for CPUs up to 360W TDP
-
SWAFAN EX ARGB Fans (3x120mm) – Powerful airflow with vibrant addressable RGB lighting
-

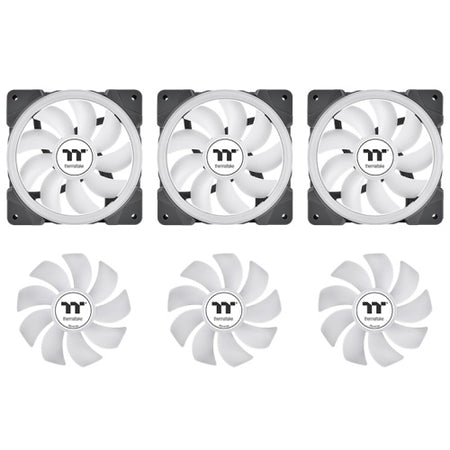

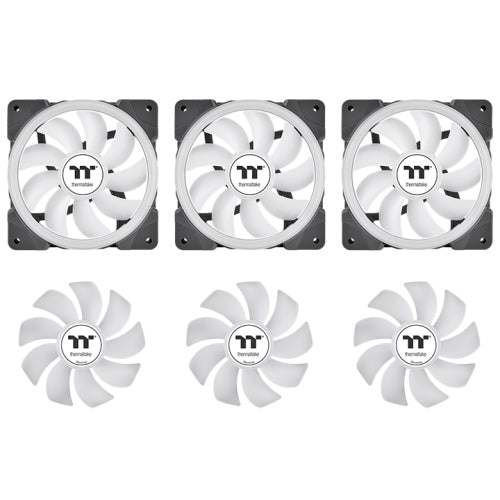

Swappable Fan Blades – Easily switch between standard and reverse blades for optimized airflow direction
-
MAGForce 2.0 System – Simplified cable management with magnetic connection design
-
PWM Pump Control – Adjustable pump speed (1500–3300 RPM) for optimal cooling balance
-
Low Noise Operation – Engineered for quiet performance even under load
-
Broad Compatibility – Supports latest Intel and AMD platforms
Tech Specs
| Category |
Specification |
| Model / P/N |
CL-W481-PL12SW-A |
| Cooling Type |
360mm AIO Liquid Cooler |
Pump
| Parameter |
Details |
| Motor Speed |
PWM 1500 ~ 3300 RPM |
| Rated Voltage |
12V |
| Rated Current |
0.43A |
| Power Input |
5.16W |
Pump Fan
| Parameter |
Details |
| Fan Speed |
3500 RPM |
| Voltage |
12V |
| Current |
0.06A |
| Power Input |
0.72W |
| Noise Level |
20 dB-A |
| Airflow |
6.8 CFM |
| Static Pressure |
1.5 mm-H2O |
CPU Display
| Parameter |
Details |
| Display Type |
3.95” TFT-LCD x4 |
| Resolution |
720 x 720 (RGB) |
| Voltage |
5V |
| Current |
1.2A |
| Power Input |
6W |
| Interface |
Micro USB to USB (9-PIN) |
| OS Support |
Windows 10 / 11 |

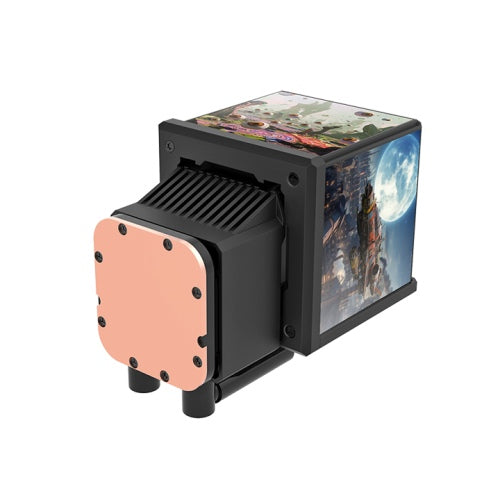

Water Block
| Parameter |
Details |
| Material |
Copper |
Fans (3x SWAFAN EX ARGB)
| Parameter |
Details |
| Dimensions |
120 x 120 x 25 mm |
| Speed |
PWM 500 ~ 2000 RPM |
| Voltage |
12V / 5V |
| Current |
0.27A & 0.72A (per fan) |
| Power Input |
3.24W & 3.6W (per fan) |
Standard Fan Blade
| Parameter |
Details |
| Airflow |
57.11 CFM |
| Static Pressure |
2.39 mm-H2O |
| Noise Level |
30.6 dB-A |
Reverse Fan Blade
| Parameter |
Details |
| Airflow |
56.26 CFM |
| Static Pressure |
2.02 mm-H2O |
| Noise Level |
32.5 dB-A |
Radiator
| Parameter |
Details |
| Dimensions |
396 x 120 x 27 mm |
| Material |
Aluminum |
Tube
| Parameter |
Details |
| Length |
460 mm |
| Material |
Rubber |
Compatibility
| Platform |
Supported Sockets |
| Intel |
LGA 2066 / 2011-3 / 2011 / 1851 / 1700 / 1200 / 1156 / 1155 / 1151 / 1150 |
| AMD |
AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2 / FM1 |
Cooling Capacity
| Parameter |
Details |
| TDP Support |
Up to 360W |
